Motorized Butterfly Valve
Motorized Butterfly Valve
Regular price
$495.00 CAD
Regular price
Sale price
$495.00 CAD

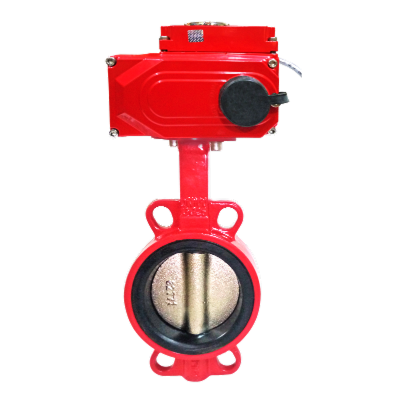

Butterfly Valve with Electrical Actuator
Contractor and project pricing available upon request.
Technical Specifications
| Product Name | Motorized Butterfly Valve |
| Material (Body) | ASTM A536 |
| O-Ring | EPDM |
| Size | 1.5 - 8" (Larger sizes available upon request) |
| Voltage | 24 AC/DC | 110V/1/60Hz | 220/1/60Hz Available |
| Allowable Pressure | 200 PSI @ 83C (180F) |
| Temperature Range | 0C - 93C (32F - 200F) |
| Connections | Flanged |
| IP Rating | IP 67 |
| Features | EPDM Coated Double Seal Disc Indoor and Outdoor use Factory Installed Supervisory Tamper Switch Assembly |
| Applications |
|
| Standards & Certifications | NSF/ANSI 61, AWWA C504,API 598, ASME B16.10, ETL actuators available |
| Warranty | 2-Year Manufacturer Warranty |
| Installation Info | Install with standard tools. Torque to flange & gasket spec. |
| Maintenance | No maintenance required. Inspect periodically. |
| Package Includes | Wafer Style BFV + Actuator |
| Shipping Information | Freight quoted upon RFQ based on destination and order size. |
| Return Policy | 30-day return policy (unused, original packaging) |
